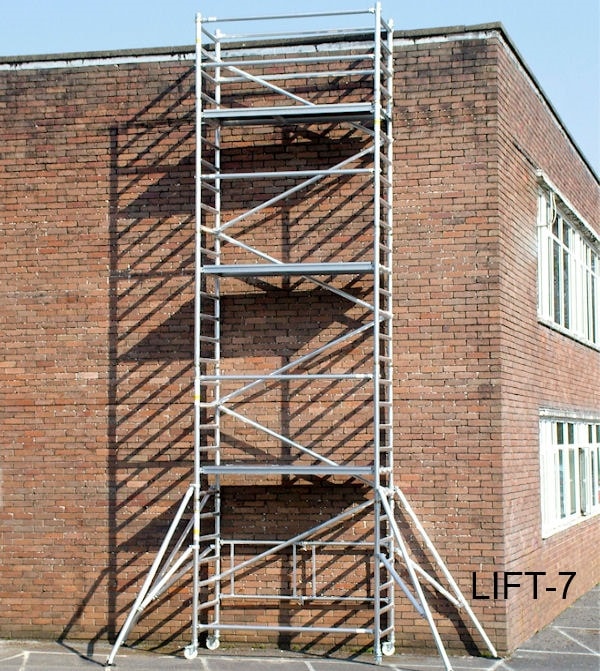

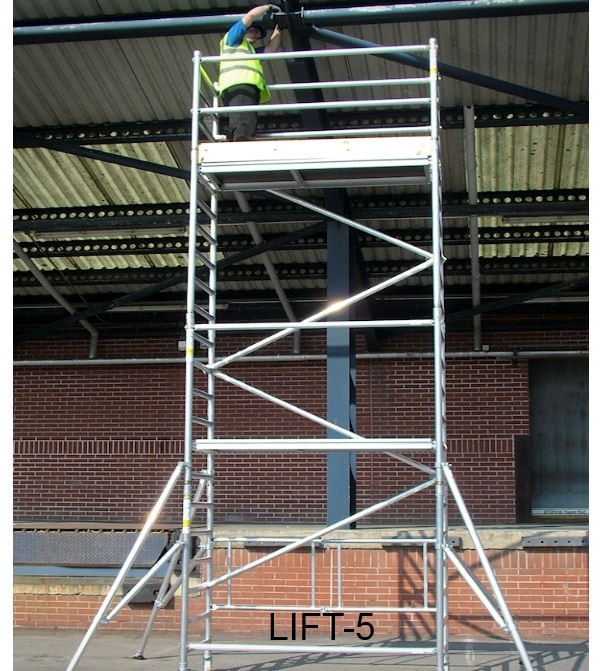

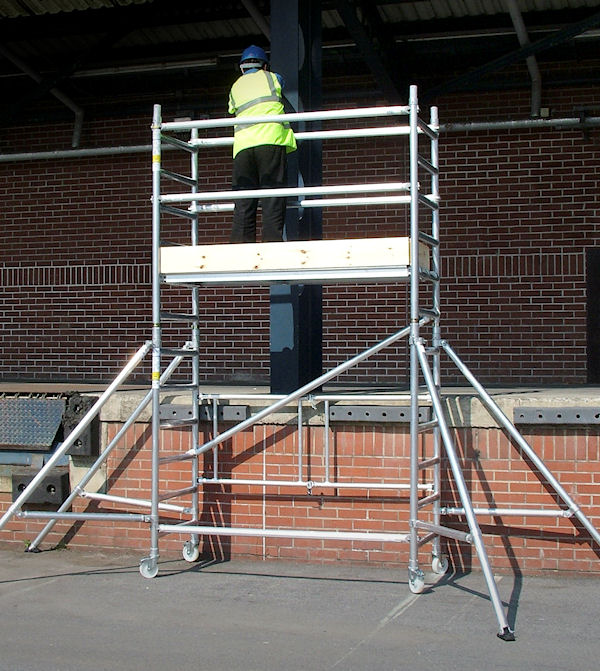

The UK Manufactured Aluminium Folding Scaffold Tower - Modular Design available in 8 Heights - 0.6m to 6.1m.
Build the Scaffold Tower Size YOU want and when YOU want it
Please note LIFT06 is not supplied with stabilisers.
The Hilyte LIFT is perfect for use where storage space is an issue. It is tested and certified to BSEN1004:2004

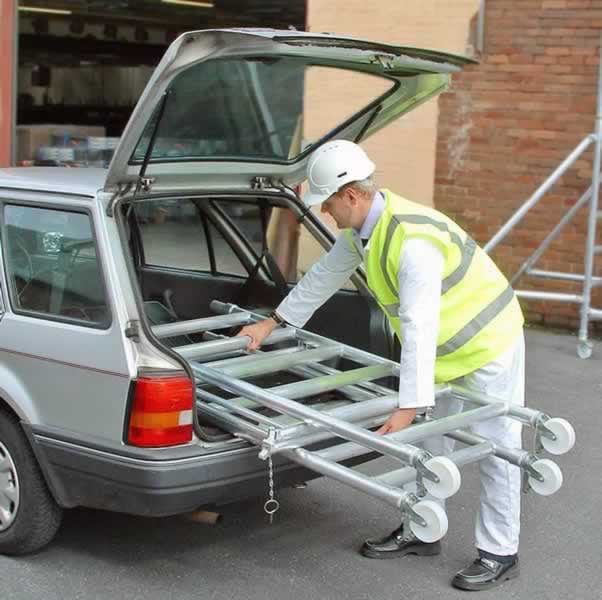

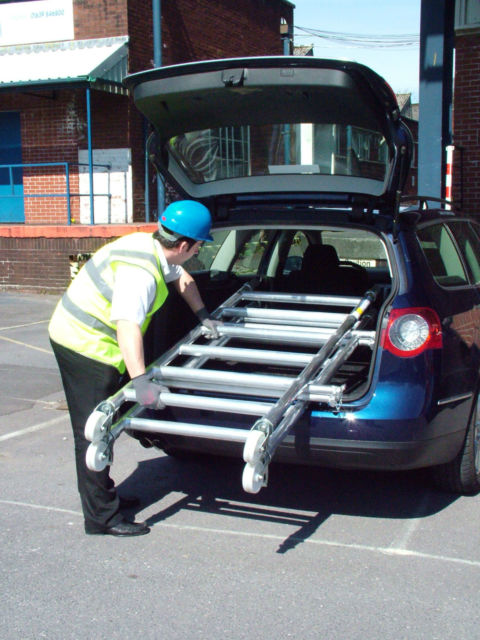

Through the trap design for safe assemble and dismantle. Folding base mechanism for quick assembly, easily transported in an estate car or small van.
- Gives user flexibility can be used as a base or full height or any height between.

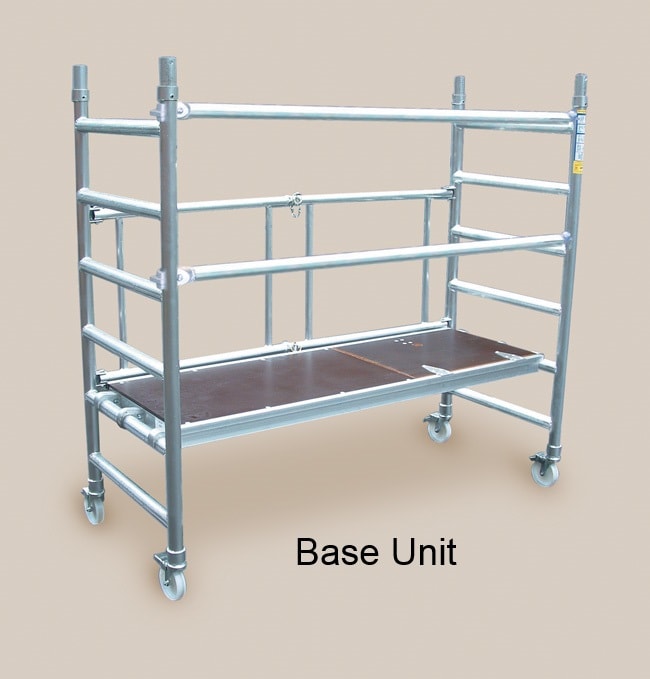

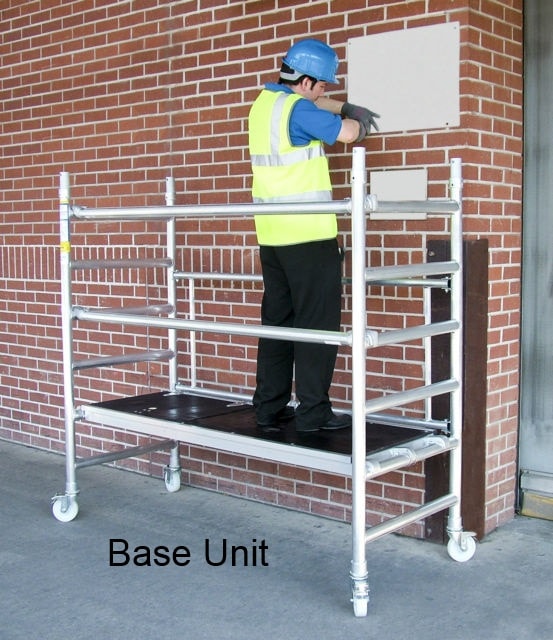

- The base can be used alone or increased using extra components to achieve 7 additional heights
- Complies to BS1139 (PART 3) 1994 and HD1004.

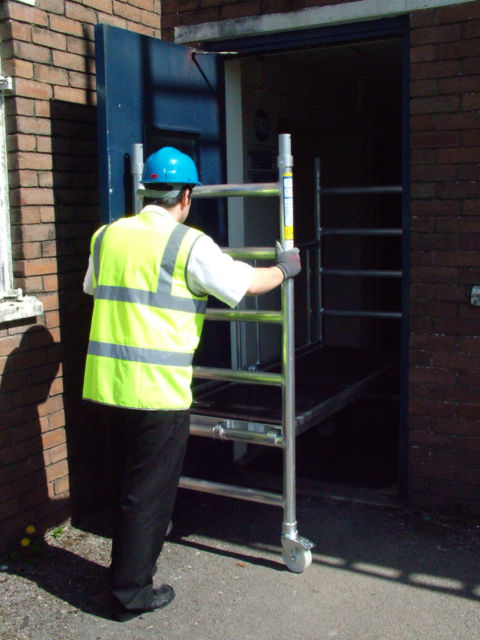

- Narrow width for small spaces (700mm).
- Quick Locking Braces. Quick-release pull rings with a stainless steel pin on all bracings for easy assembly
- Quick assembly, much quicker than a normal tower.
- All Platforms above LIFT 06 have trap door deck.
- All Platforms include Aluminium Toeboard Sets
- The individual decks have a maximum capacity of 275kg.
- Adjustable Legs for uneven ground can be fitted as an extra
- Stabilisers can be up-graded from Standard Stabilisers on 2.1m, 3.1m, and 3.6m.
- Dual Locking Wheels (125mm) included. Although 150mm available at extra cost.

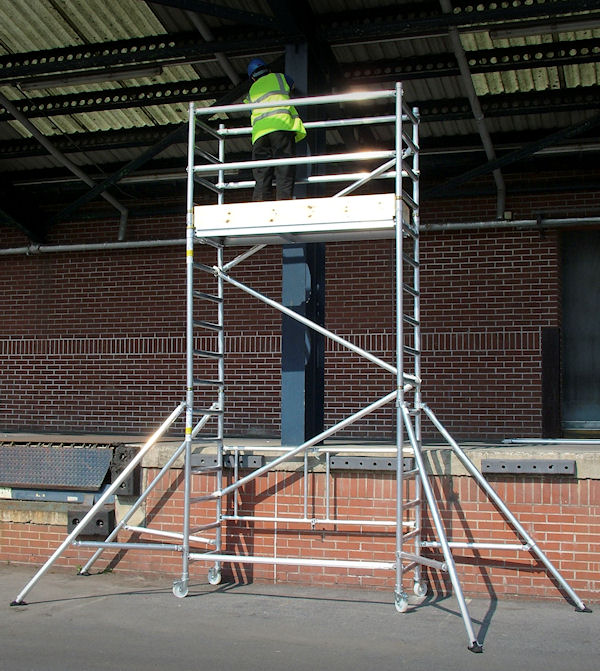

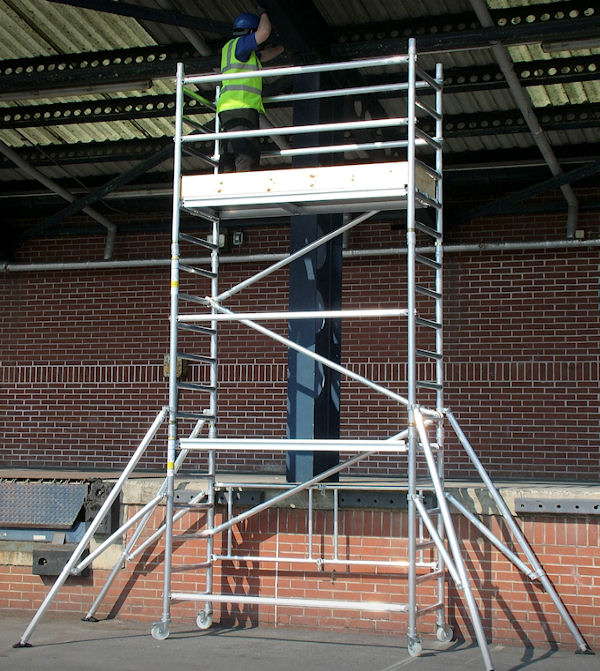

- Telescopic stabilisers optional extra.
- The Manufacturer's Full Specifications are available here
- The Lyte LIFT Tower User Instructions are available here
Model | Tower Height |
Platform Height |
Weight |
---|---|---|---|
LIFT 06 | 1.6m | 0.6m | 45.8kg |

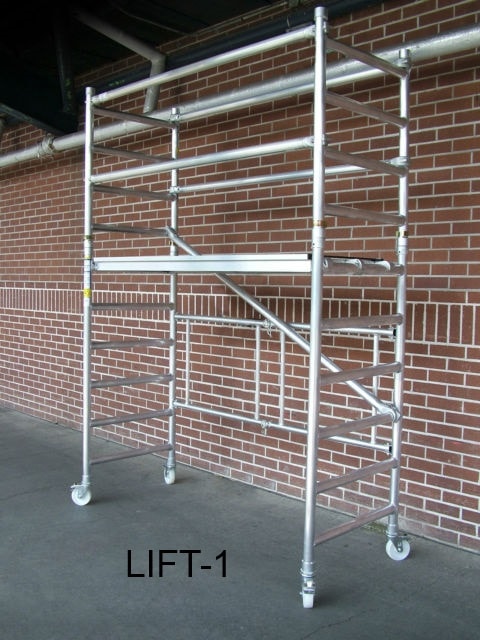

LIFT 16 | 2.6m | 1.6m | 74.9kg |
LIFT 21 | 3.1m | 2.1m | 80.7kg |
LIFT 31 | 4.1m | 3.1m | 112.1kg |
LIFT 36 | 4.6m | 3.6m | 115.7kg |
LIFT 46 | 5.6m | 4.6m | 143.1kg |
LIFT 51 | 6.1m | 5.1m | 148.9kg |

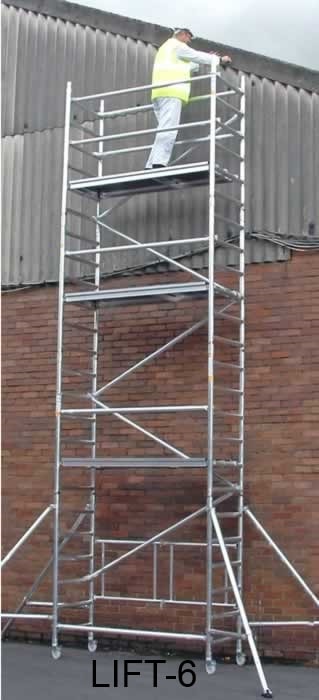

LIFT 61 | 7.1m | 6.1m | 180.3kg |
